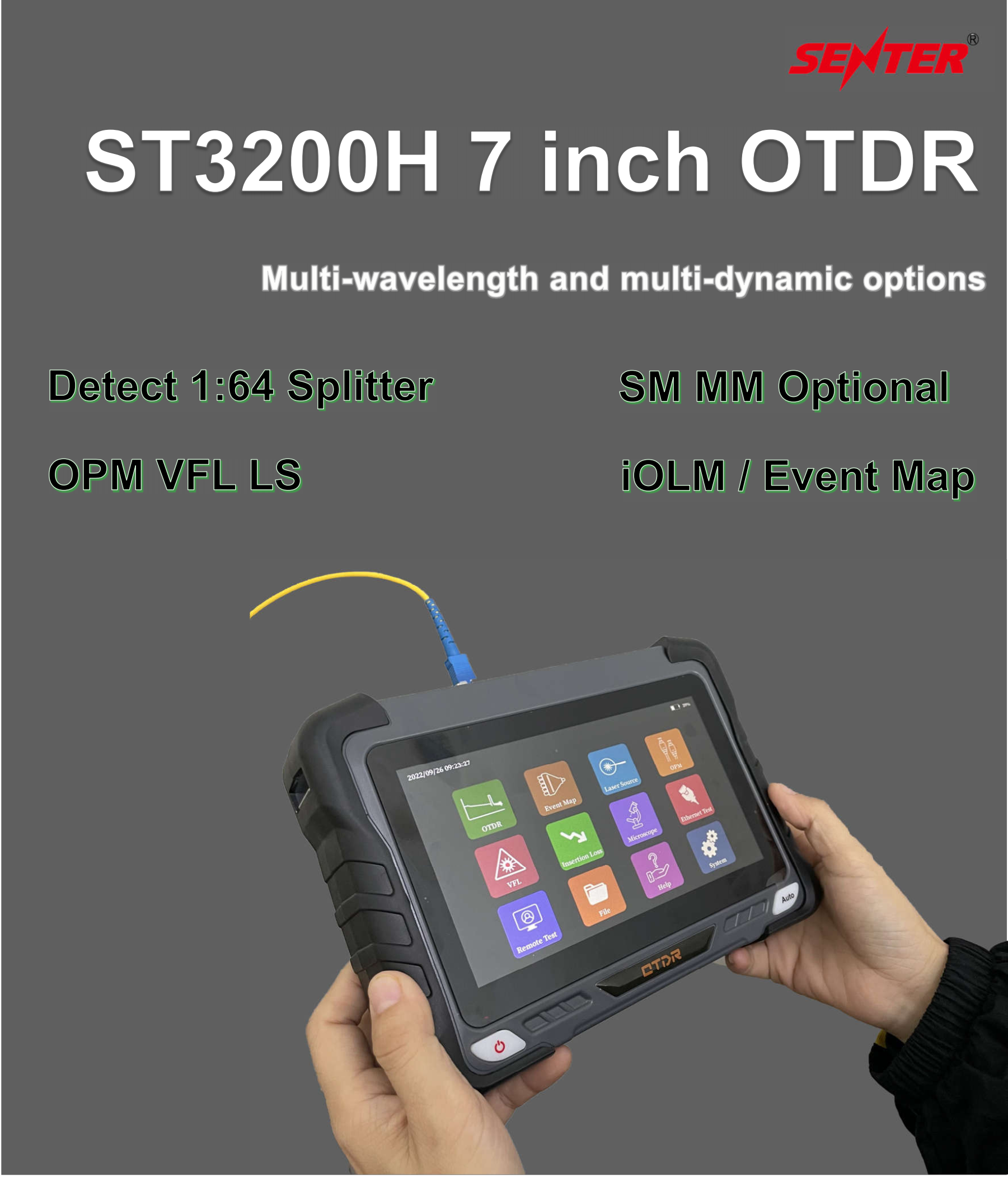

Functions:
5m Event Dead Zone
Support SM/MM/SM+MM test
Online detection, effective APD active protection
PON network online test
Support fast charging protocol and power bank
Maximum dynamic range 45dB

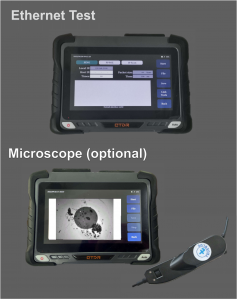

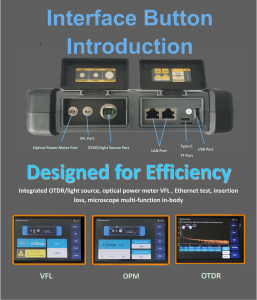

Ethernet test, supporting Ethernet Remote Test
Mobile APP wireless operation

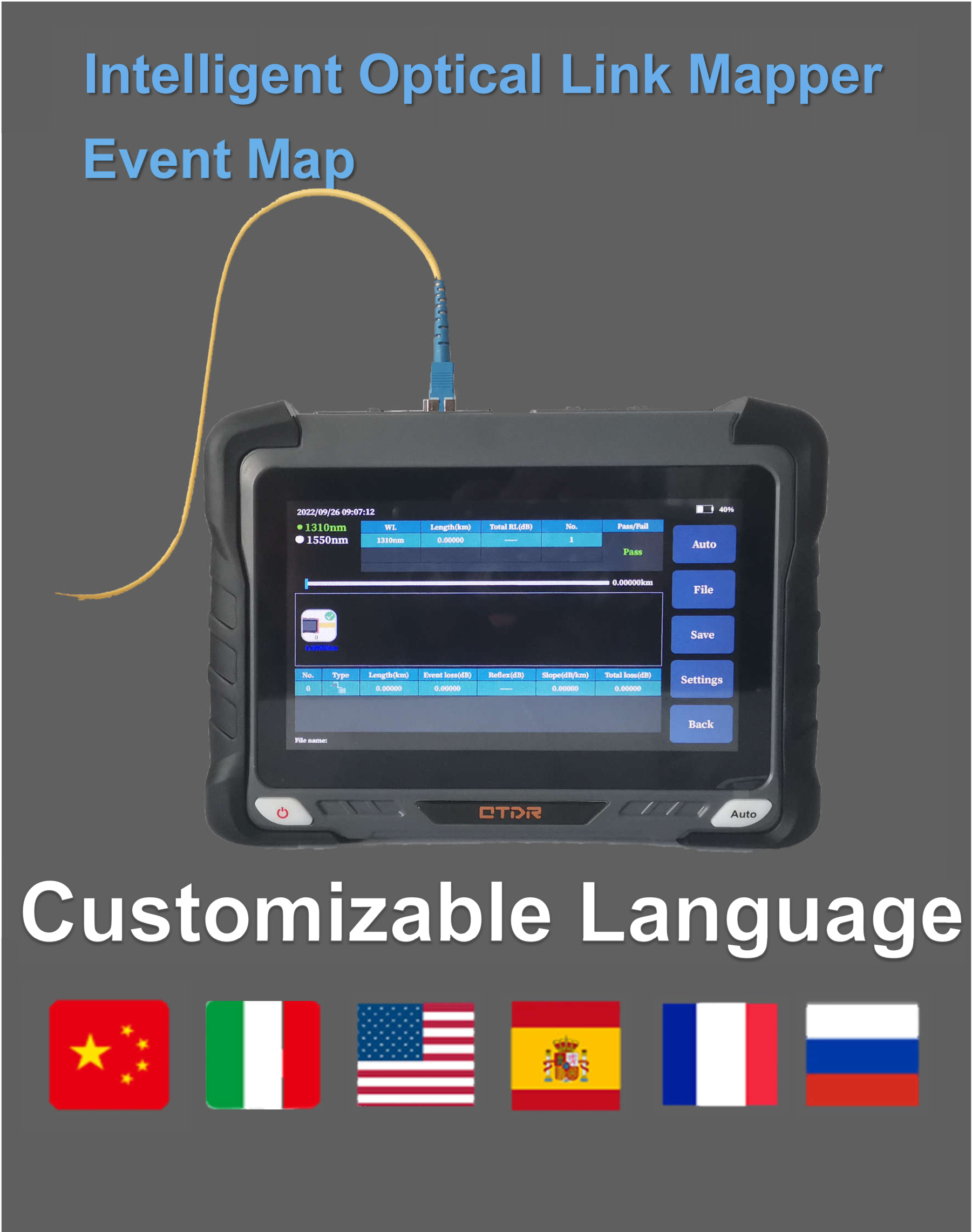

Integrate OTDR/VFL/LS/OPM/Event Map/End Detection/Optical Loss Test/Ethernet test/
Remote test/File management
Features:
7 inch screen Key + touch operation mode
Detection of online test Caution function
Report printing Files batch processing
Multi wavelength simultaneous test
Results automatic analysis
Specifications:
| Model | A | B | C | D | E | F | G | H | I | J | L | L | M | N | O | P |
| Type | SM | MM | SM/MM | |||||||||||||
| Wavelength | 1310/1550nm | 1310nm /1490nm /1550nm | 1310nm /1550nm /1625nm | 1310nm /1550nm /1650nm | 1310nm /1550nm /1625nm/1650nm | 1310nm /1490nm
/1550nm /1625nm |
850nm/ 1300nm | 850nm /1300nm /1310nm /1550nm | ||||||||
| Dynamic Range | 32/30 | 35/33 | 38/36 | 42/40 | 45/43 | 32/30/30 | 37/35/35 | 32/30/30 | 37/35/35 | 32/30/30 | 37/35/35 | 37/35/35 | 37/35/35/35 | 26/28 | 26/28/35/33 | 26/28/37/35 |
| Event Blind Zone | 0.8 | 0.5m | 0.8m | 0.5m | 0.8m | 0.5m | 0.8m | 0.5m | 0.5m | 0.5m | 1m | |||||
| ATT Blind zone | 4 | 3.5m | 4m | 3.5m | 4m | 3.5m | 4m | 3.5m | 3.5m | 3.5m | 6m | |||||
| Test Range | 100m/500m/1.25km/2.5km/5km/10km/20km/40km/80km/125km/260km/420km | |||||||||||||||
| Pulse Width | 3ns/5ns/10ns/20ns/30ns/50ns/80ns/100ns/200ns/300ns/500ns/800ns/lus/2us/3us/5us/8us/10us/20us | |||||||||||||||
| Ranging accuracy | ± (0.75m+ Sample interval+Q0025% XTest distance) | |||||||||||||||
| Loss accuracy | ± 0.03d B/d B | |||||||||||||||
| Sample Points | ≥256k | |||||||||||||||
| Sample Resolution | 0.015m~16m | |||||||||||||||
| Reflection Accuracy | ±2dB | |||||||||||||||
| Loss Resolution | 0.01dB | |||||||||||||||
| Loss Threshold | 0.01dB | |||||||||||||||
| File Format | SOR Standard File Format | |||||||||||||||
| Loss Analysis | 4-point method /5-point method | |||||||||||||||
| Laser Safety Level | Class II | |||||||||||||||
| Refresh Rate | 4Hz(Typ.) | |||||||||||||||
| Data Storage | Internal storage： 2GB, 200,000curves； External storage：64GB | |||||||||||||||
| Connector | FC/UPC (Interchangeable SC ST) | |||||||||||||||
| Data Interface | USB-A. Type-C port, RJ45 LAN 10/100Mbit/s | |||||||||||||||
| OPM | ||||||||||||||||
| Wavelength range | 800nm~1700nm | |||||||||||||||
| Connector | Universal FC/SC/ST | |||||||||||||||
| Test scope | -50dBm~+26dBm/-70dBm~+6dBm | |||||||||||||||
| Uncertainty | ±5% | |||||||||||||||
| Calibration wavelength | 850nm/980nm/1300nm/1310nm/1490nm/1550nm/1625nm/1650nm | |||||||||||||||
| L S | ||||||||||||||||
| Laser Type | FP-LD | |||||||||||||||
| Wavelength | Consistent with OTDR output wavelength | |||||||||||||||
| Output power | >-5dBm(SM fiber) | |||||||||||||||
| Mode | CW/270Hz/lkHz/2kHz | |||||||||||||||
| Stability | CW, ±0.5dB/15min (Test after 15 minutes of preheating) | |||||||||||||||
| Connector | FC/UPC (Interchangeable SC、ST) VFL | |||||||||||||||
| Wavelength | 650nm + 20nm | |||||||||||||||
| output power | ≥10mW | |||||||||||||||
| Mode | CW/lHz/2Hz | |||||||||||||||
| Connector | FC/UPC (Interchangeable SC、ST) | |||||||||||||||
| The Optical Loss Test index refers to the above light source and optical power meter index. | ||||||||||||||||
| Others | ||||||||||||||||
| Display | 7 inch color LCD + touch screen Resolution：800×480 | |||||||||||||||
| Power supply | Type-C adapter： Input： 100V〜240V , 50/60Hz ,Output：5V/3A,9V/2A,12V/1.5A Lithium battery : 3.7V,10400mAh | |||||||||||||||
| working temperature | -10°C~+50°C | |||||||||||||||
| Storage temperature | -40°C 〜+70°C | |||||||||||||||
| relative humidity | 0〜95%, Non Condensing | |||||||||||||||
| Weight | W 1.2kg | |||||||||||||||
| Size | 215mm x 160mm x50mm | |||||||||||||||
| Functions of Host： OTDR/VFL/LS/OPM/Event Map/End Detection/Optical Loss Test/Ethernet test/Remote test/File management | ||||||||||||||||
