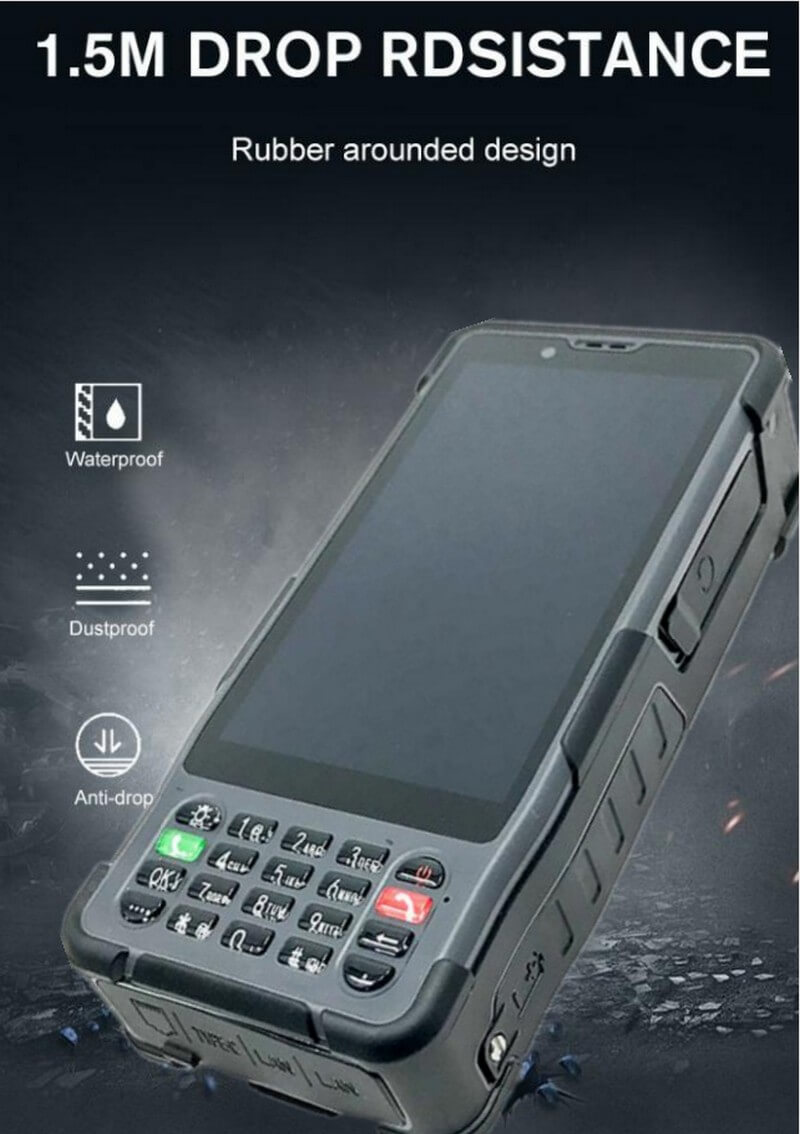

SENTER S337 V2 Telecom test PDA combines the functions of Android smart phone and telecom testing equipment. It applied for optical fiber and copper cable testing.
S337 V2 Telecom test PDA supports: Wifi 5G Android 9.0 OS Smart Phone + 1D/2D Barcode Scan+ VDSL2/35b/G.FAST+ DMM + TDR + OPM+VFL + Cable Tracing+ Check Line Sequence+ Landline Telephone+ IPTV+1 Gbps Download Speed (Built-in Mainboard)
1920×1080 IPS true color LCD with touch screen
Android 9.0 operating system
Support CDMA bandwidth 1X/EVD0 BC0
Support TD-SCDMA bandwidth B34 / B39
Support GSM bandwidth 850/900/1800/1900
Support TDD-LTE bandwidth B38 / B39 / B40 / B41
Support FDD-LTE bandwidth B1/B2/B3/B4/B5/B7/B8
Rechargeable 3.8V 6000mAh polymer battery
Support 802.11a/b/g/n/ac, WIFI 2.4G and 5G
Support Bluetooth function
Support flashlight function
Volume: 167 * 87 * 25mm (without scanner)
Weight: 400g

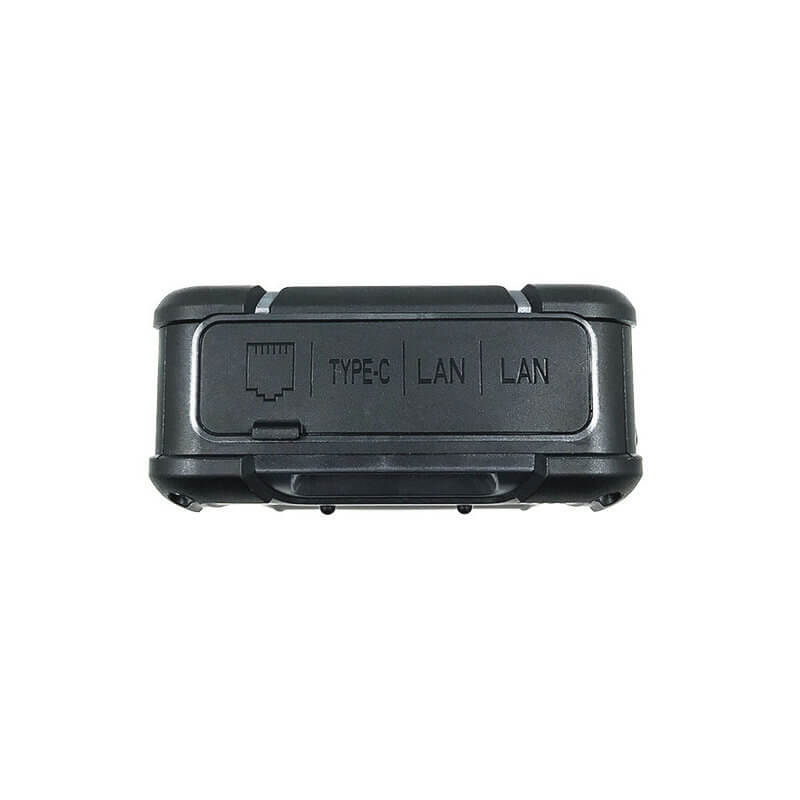

| General Specifications | |

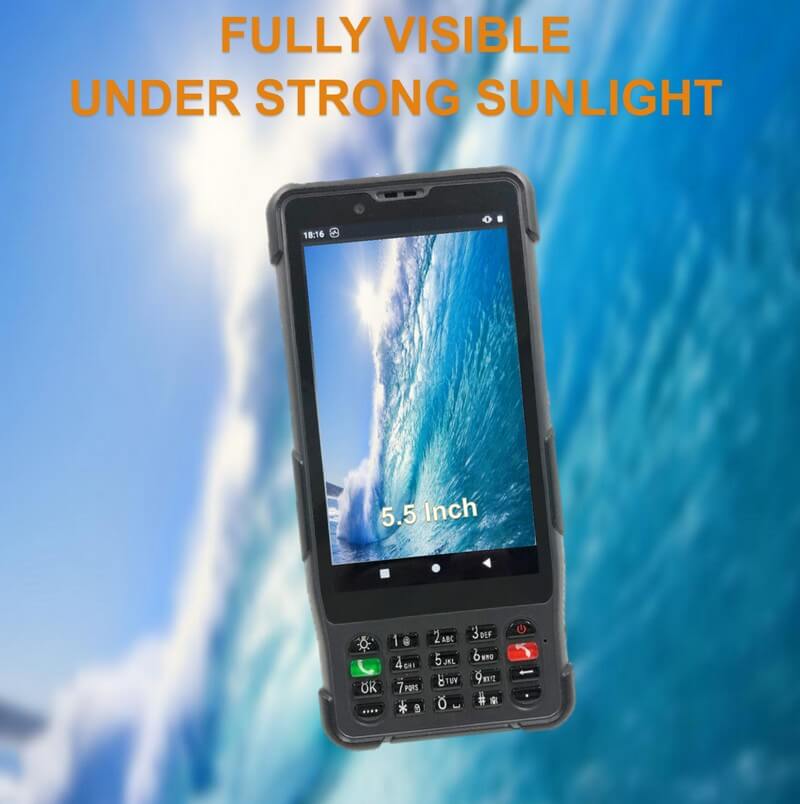

| Display screen | 1080X1920TFT, true color 5.5 inch Capacitance touch screen |
| Operation system | Built-in Android 9.0 operation system |
|
System |
CPU is Qualcomm450,1.8GHZ 8Core RAM 2G bytes
Flash 2+16G bytes ,3G+32G Supports TF memory card (The biggest capacity is 64G) |
| Bluetooth | Support 4.0 |
| WIFI | Support IEEE 802.11b/g/n/ac |
|
4G |
CDMA: 1X/EVDO BC0 GSM 850/900/1800/1900
WCDMA:B1/B2/B5/B8 TD-SCDMA：B34/B39 FDD-LTE :B1/B2/B3/B4/B5/B7/B8 TD-LTE:B38/B39/B40/B41 |

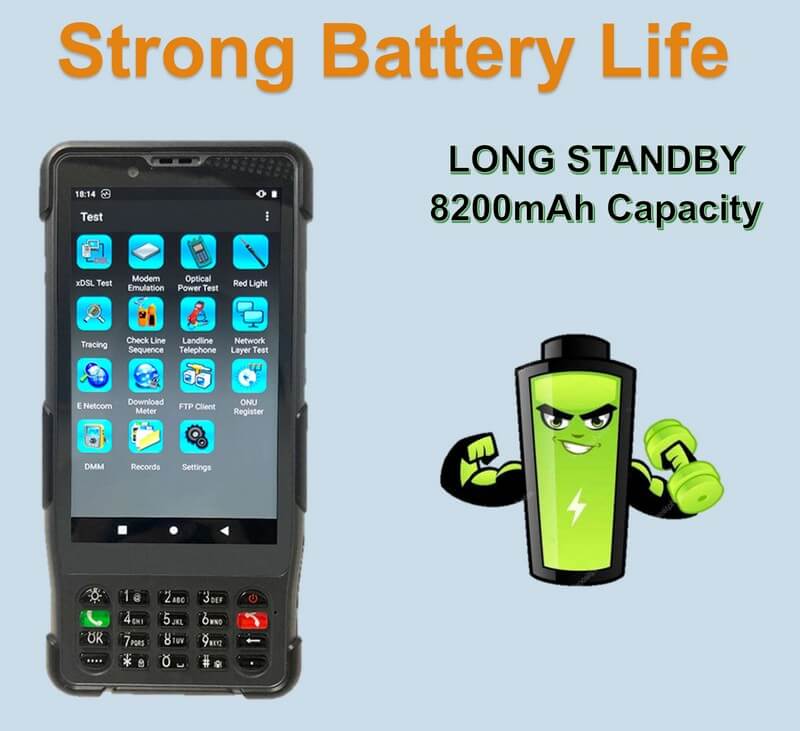

| Power supply | Rechargeable 2pcs 3.8V 4100mAh |
|
Camera |
5 million pixel front camera and 13 million pixel rear camera, support auto focus and flash function. |
| Dimension | 181mm*87mm*45mm |
| xDSL Index
xDSL test main functions |
Physical Layer Info PPPoP Dial
FTP Client, Fixative IP Network Layer Test Modem Emulation PING Support VLAN, HLOG,QLN Error Code Statistics Bit Graph Display BPT /SNR Data Modem Parameter Setting(VPI/VCI) |
| ADSL Index | |
|
Standards |
ITU G.994.1 (G.hs), ITU G.992.5, ITU G.992.5 Annex L. The max distance which can be connected is 6.5km. Be compatible with ADSL, ADSL2 and READSL. |
| Attenuation | 0~63.5dB |
| Noise margin | 0~32dB |
| Upstream channel rate (interweaved / fast mode) | 0~1.2Mbps |
| Downstream channel rate (interweaved / fast mode) | 0~24Mbps |
| The modulating bits in the DMT sub-channel | 0~15 and each sub-channels’ frequency points |
| The number of error codes | CRC, HEC, FEC, NCD, OCD |
|
Other parameters |
The output power of DSL
It can display every condition of the DSL line: lost signal and shutdown of link |
| VDSL2 Index | |
| Standards | ITU G.993.2 (VDSL2). Be compatible with ADSL2+, ADSL standard. |
| Upstream channel rate (interweaved / fast mode) | VDSL2 : 0-100M |
| Downstream channel rate (interweaved / fast mode) | VDSL2: 0-100M |
| The modulating bits in the DMT sub-channel | 0~15 and each sub-channels’ frequency points |
| The number of error codes | CRC, HEC, FEC, NCD, OCD |
|
Other parameters |
The output power of DSL
It can display every condition of the DSL line: lost signal and shutdown of link DSLAM information Error seconds INP pulse protection SNR channel figure Channel noise margin figure |
| Support profiles | Profile 8a, 8b, 8c, 8d, 12a, 12b, 17a |
| G.Fast Index | |
|
Other parameters |
Be compatible withVDSL2, ADSL2+, ADSL standard. DSL line attenuation
DSL line noise margin DSL line up/down channel speed (Inter/Fast mode) DSL line up/down maximum rate DMT sub channel bit number: 0～15, and each sub channel frequency points DSL line error number (CRC, HEC, FEC, LCD, OCD) DSL line local output power DSLAM information Error Code Second Impulse Noise Protection (INP) Support 9 VDSL2 profiles: profile 8a, 8b, 8c, 8d, 12a, 12b, 17a,30a,35b |
| DMM Test Index | |
| DC voltage | -400 to 400 V; Resolution: 0.1V |
| AC voltage | 0 to 290 V |
| Capacitance | 0 to 1000nF; Accuracy: 0-10nF: ±2nF, 10nF-1000nF: ±2 %±2nF |
| Loop resistance | 0 to 20KΩ; Accuracy: 0-100: ±3%±4Ω, 100-500: ±3%, 500-20 KΩ: ±2% |
| Insulation resistance | 0 to 50MΩ; Accuracy: 0-1.0M: ±0.1 MΩ, 1.0-30M: ±10%±0.5 MΩ |
| Cable Fault Locator (TDR) Index | |
| General specifications | Check line mix and break fault. Auto and manual distance test |
| Test range | 4km/8km optional |
| Highest resolution | 1m |
| Dead zone | 0m |
| Power consumption | 1W | |
| VOP adjusting range | 100-300 m/us | |
| Distance test accuracy | ≤1m | |
| Pulse test voltage range | ≥30V | |

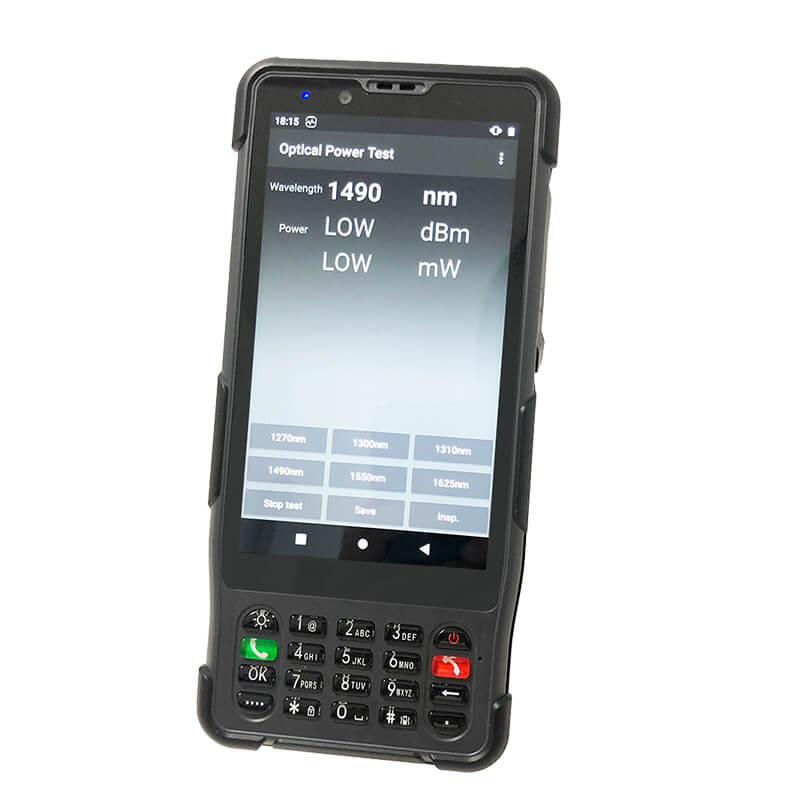

| Optical Power Index | ||
| Wavelength range(nm) | 800~1700 | |
| Photo sensing material | InGaAs | |
| Power test range(dBm) | -70~+10 or -50~+26 | |
| Error range | ±5% | |
| Display distinguishability | Linear display: 0.1%; logarithmic display: 0.01 dBm | |
| Connector | 2.5 mm universal adapter | |
| VFL Index | ||
| VFL | FP-LD | |
| Wavelength | 650nm±20nm | |
| Output power | 5mw | |
| Connector | 2.5mm universal adapter (SC, FC, ST) | |
| Working mode | CW or 2Hz modulation | |
| Applicable fiber | SM / MM | |

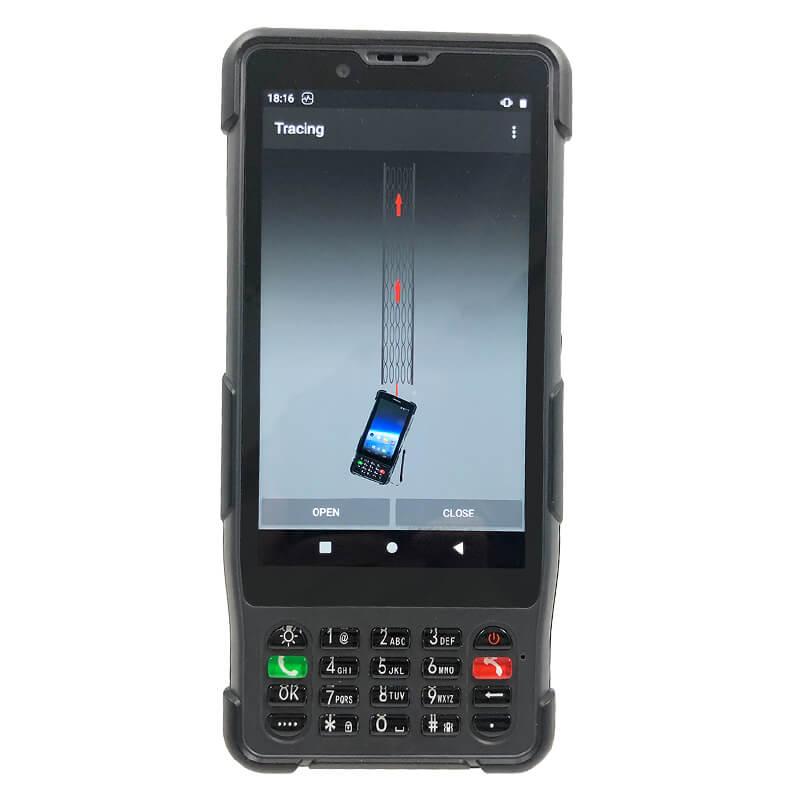

| Cable Tracking Index | ||
| Test cable type | Network cable, twisted pair cable, telephone line, USB cable, coaxial cable | |
| Line status test | Determine open or short circuit | |
| Voltage polarity detection | Positive and negative of DC voltage | |
| Distance of signal transmission | No less than 3km | |
| DC Voltage | No more than 48V | |

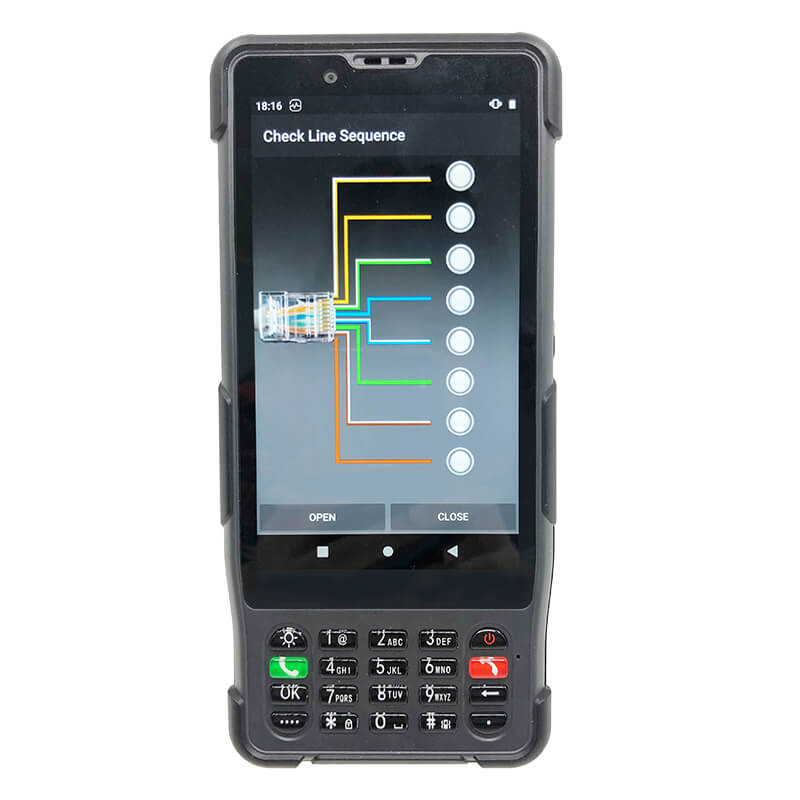

| Check Line Sequence Index | ||
| Function | Support generate network line signal to view the network check line sequence with the receiver | |
| Feature | Easy to operate: determine the line sequence by receiving side lights order | |
| Landline Telephone Index | ||
| Function | Connector with telephone line, can be used as landline | |
| IPTV Test Index | ||
| Curt rate(kbps) | Transfer rate of the IPTV service packages | |
| Standard / Basic Part | ||
| CDMA: 1X/EVDO BC0 GSM 850/900/1800/1900 WCDMA:B1/B2/B5/B8
TD-SCDMA：B34/B39 FDD-LTE :B1/B2/B3/B4/B5/B7/B8 TD-LTE:B38/B39/B40/B41 |
S337 |
|
| Optional Module | ||
| xDSL (Choose 1 only) | VDSL2 Module | V(Also support ADSL) |
| VDSL2 Annex Q Vplus/35b | 3 | |
| G.fast Module | g | |
| 1D/2D Bar Code Scanning Module | B/2 optional | |
| Optical Power Meter Module | G | |
| Cable Fault Locator Module | 8(4km or 8km optional) | |
| VFL Module | H | |
| DMM Module | D | |
| Cable Tracking Module | X | |
| Check Line Sequence Module | W | |
| IPTV Test | I | |
| Landline Telephone Module | T | |
FTTH, FTTx；used for optical fiber and copper cable testing
1 year warranty，Lifetime maintenance service.
